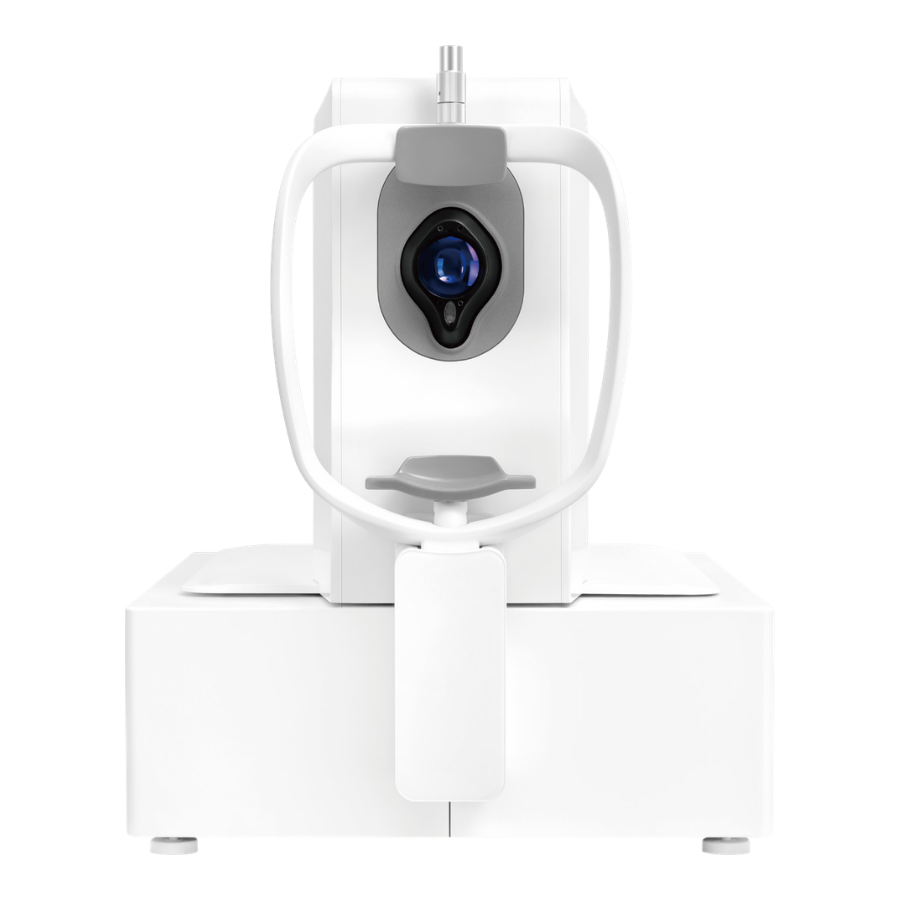

DREAM OCT® VG 100D
VG 100D combines efficient 100 kHz swept-source scanning, deep imaging capability, and multimodal clinical workflow support for retina and anterior segment applications.
At-a-Glance Technical Snapshot
Core technical specifications of the VG 100D designed for reliable swept-source OCT imaging, multimodal fundus integration, and efficient clinical workflow across retina and anterior segment applications.
DREAM Concept: Deep • Rapid • Extensive • Accurate • Multimodal Imaging
The VG 100D combines deep imaging, efficient 100 kHz swept-source performance, and multimodal fundus integration in one compact clinical OCT platform.

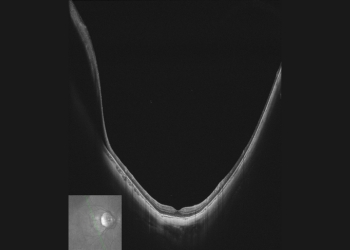

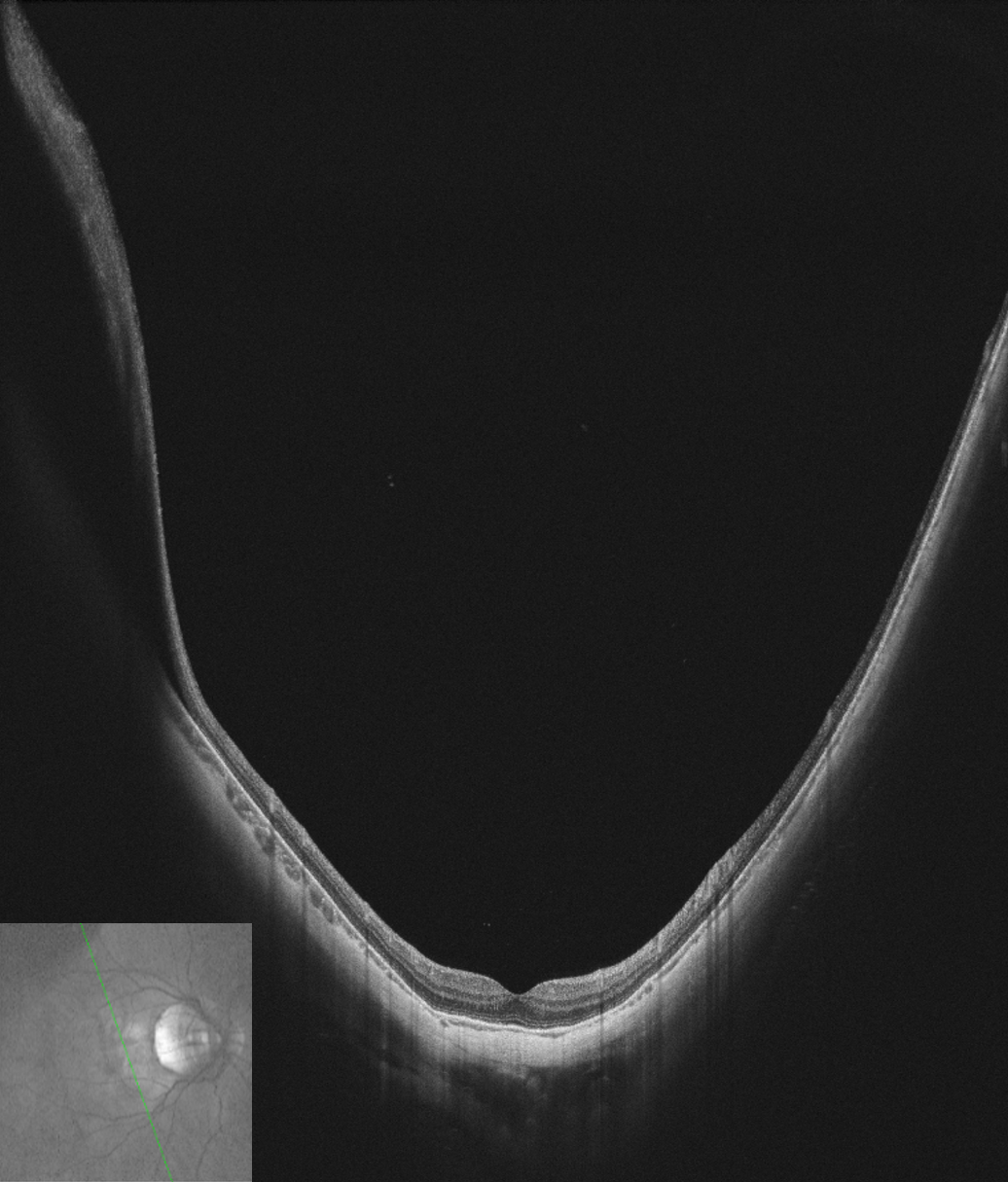

Deep Imaging
Supports clear structural visualization across retina and anterior segment workflows.
- 9 mm OCT imaging depth
- 12.2 mm depth for anterior segment imaging
Efficient 100 kHz Performance
Designed for dependable day-to-day imaging and smooth workflow in routine clinical use.
- 100 kHz A-scan rate
- Optimized for daily clinical practice
Wide Retinal Coverage
Supports standard retinal documentation and OCTA review with balanced field coverage.
- 16 mm retina scan range
- 23.5 × 17.5 mm OCTA montage
Multimodal Clinical Workflow
Combines SS-OCT, cSSO fundus imaging, and automatic alignment in one integrated system.

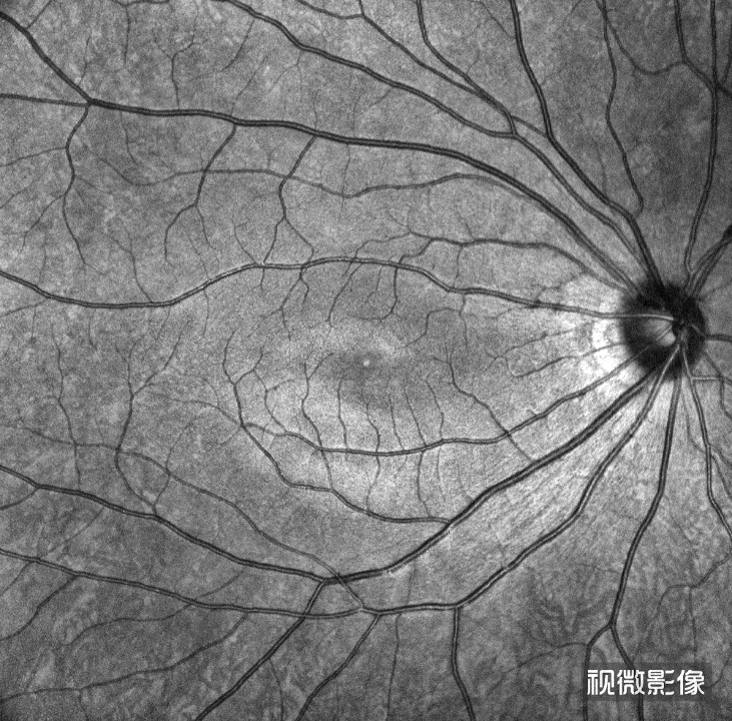

- cSSO fundus imaging
- Automatic / Electrical alignment
Clinical Imaging Applications
The VG 100D is designed to support retina, glaucoma, and anterior segment workflows within one integrated swept-source OCT platform.

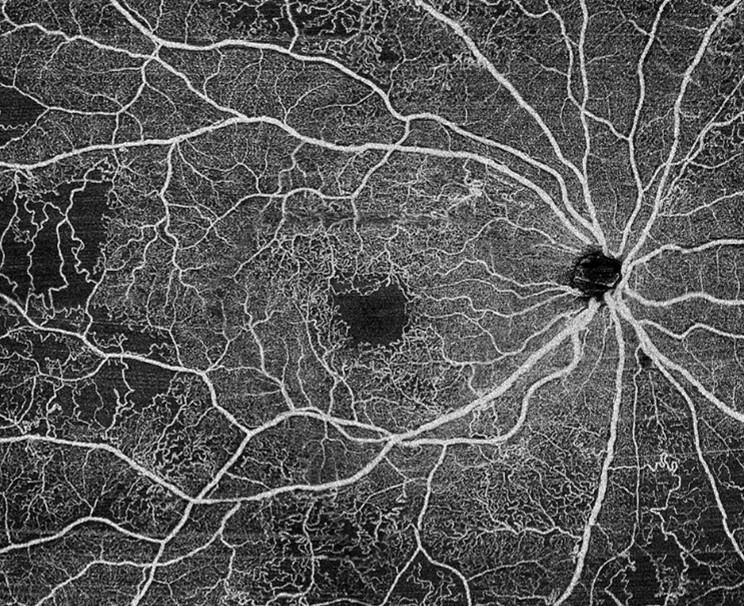

Retina Imaging
Supports high-resolution retinal structure evaluation with dependable scan coverage for routine clinical use.
- 16 mm maximum retina scan range
- 15 mm × 12 mm maximum 3D scan range

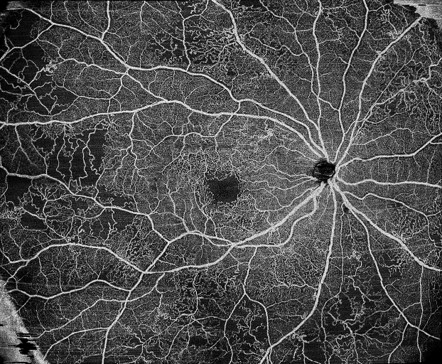

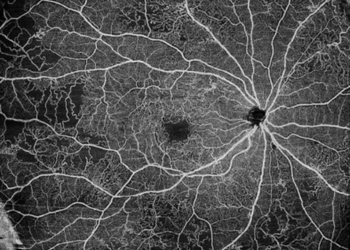

OCTA Review
Standard OCTA montage capability supports efficient vascular imaging review and documentation.
- 23.5 × 17.5 mm OCTA montage
- Balanced field coverage for clinical workflow
Glaucoma & Optic Nerve Workflow
High optical resolution supports structural analysis for optic nerve and posterior segment monitoring.
- 3.8 μm axial resolution
- 10 μm lateral resolution

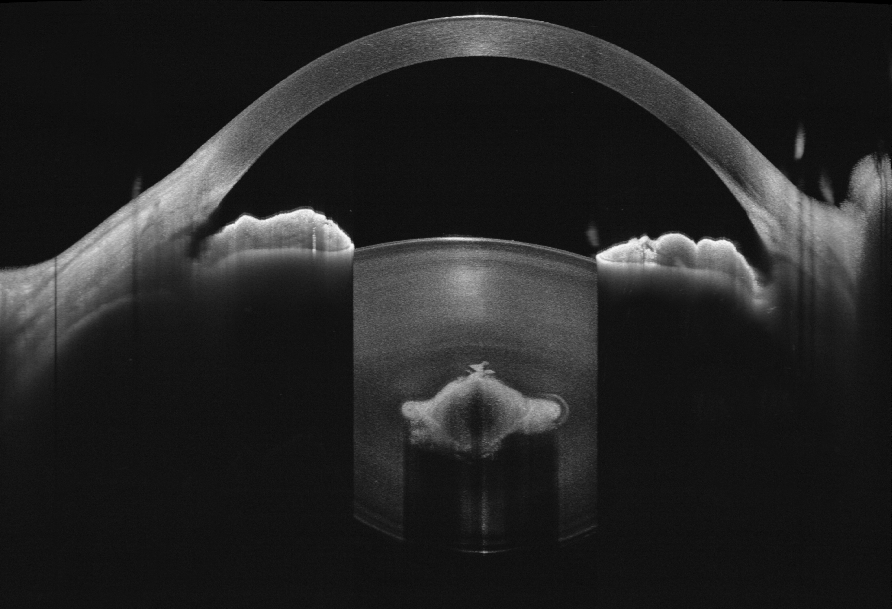

Anterior Segment Imaging
Integrated anterior segment capability extends the system beyond posterior imaging for broader daily use.
- 12.2 mm AS imaging depth
- Automatic / Electrical alignment
Detailed Technical Parameters
Complete technical specifications structured for detailed evaluation, product comparison, and procurement review.
| Category | Specification |
|---|---|
| OCT Technology | SS-OCT |
| Central Wavelength | 1050 nm |
| A-scan Rate | 100 kHz |
| Axial Resolution (Optical) | 3.8 μm |
| Lateral Resolution (Optical) | 10 μm |
| Axial Resolution (Digital) | 2.0 μm |
| Imaging Depth | 9 mm (12.2 mm for AS) |
| Maximum Retina Scan Range | 16 mm |
| Maximum 3D Scan Range (Single Shot) | 15 mm × 12 mm |
| OCTA Montage | 23.5 mm × 17.5 mm |
| Fundus Imaging Technology | cSSO |
| Light Source | SLD |
| Fundus Wavelength | 830 nm |
| Field of View | 40° × 40° |
| Range of Refractive Compensation | −20D to +20D |
| Tracking Rate | 60 Hz |
| Alignment | Automatic / Electrical |
| Anterior Segment | Supported |
| Posterior Segment | Supported |
| Biometry | Not Supported |

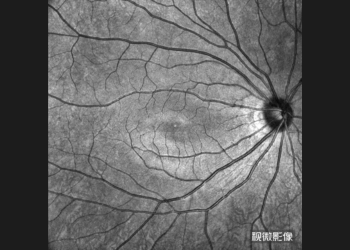

Clinical Imaging Samples
Real clinical imaging examples demonstrating depth, clarity, and ultra-widefield OCTA performance.
